NQ NQ3 reaming shell is a part of wireline drilling system. NQ NQ3 reaming shell is mounted between outer tube and diamond bit. when drilling,the diameter of the drill hole is gradually reduced and the drill hole is slightly tapered. This situation is caused by the radial wear of the diamond bit. So the reaming shell is needed.The main function of reaming shell is to keep the drill hole size to the nominal diameter. To let the new changed diamond bit to be lowered into the bottom of the drill hole without getting stuck. Another function of reaming shell is to stabilize the core barrel and prevent the swing.

CGEO mainly offers three types of NQ NQ3 reaming shells:

                                                                                               -NQ NQ3 Impregnated Diamond Reaming Shells(IMP R/M)

                                                                                               -NQ NQ3 TSP Surface Set Diamond Reaming Shells(TSP SS R/M)

                                                                                               -NQ NQ3 Natural Diamond Surface Set Reaming Shells(ND SS R/M)

NQ NQ3 REAMING SHELL OVERVIEW

NQ NQ3 REAMINGS SHELL SIZE SPECIFICATIONS

NOTE:

     *NQ NQ3 IMP reaming shell,NQ NQ3 TSP SS reaming shell, NQ NQ3 ND SS reaming shell are all available

    **other type of NQ NQ3 reaming shell could be customized as requests

   ***Other size of NQ NQ3 reaming shells are also available

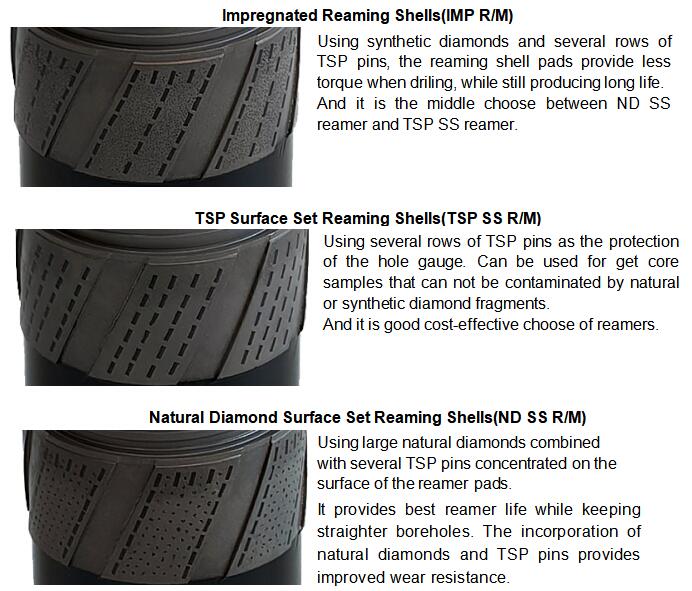

NQ NQ3 REAMING SHELL TYPE OPTIONS

REFERENCE PART#

C4064590 C4065050 C4065001 C24901 C4064554 C4064364 C4065051 C4062562 C4063081 C4062938

C4064881 C4064272 C4065668

C3760955435 C3760955436 C3760000167 C3760955432 C3760955433

REFERENCE PHOTOS
