HQ diamond bit is the very important part of wireline drilling system. HQ diamond bit is the part directly cut the rock, to penetrate through the different stratum. Relay on the HQ wireline coring system, circulate the rock debris to the surface by drilling fluid,at the same time, retrieve the 36.4 mm column core sample by HQ core sampling tube(commonly HQ inner tube).

The quality of the HQ diamond bits will mostly decide the 59.5mm B size diamond drilling efficiency.

CGEO mainly offer four types of HQ diamond bits:

                                                                                 - HQ Impregnated Diamond Bits(HQ IMP Bit)

                                                                           -HQ Surface Set Diamond Bits(HQ SS Bit)

                                                                   -HQ Polycrystalline Diamond Compact Bits(HQ PDC Bit)

                                                                    -HQ Thermally Stable Diamond Polycrystalline Bits(HQ TSP Bit)

Among diamond bits, CGEO especially concentrates on the impregnated diamond bits. Because the impregnated diamond bit is very complicated, and it is the best choice for most rock formations.

It has best resistance to wear in most rock formations, particularly in fissured and fractured formations. It is less sensitive to abuse, rough handling and improper use.

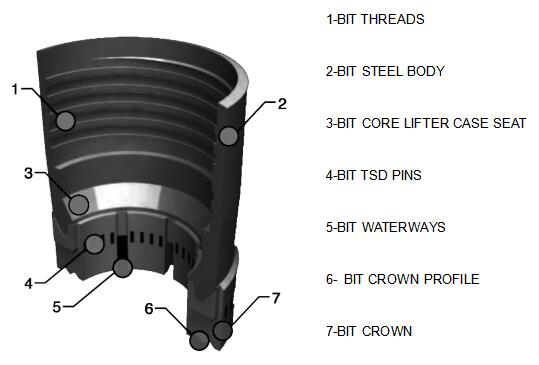

HQ DAIMOND BIT OVERVIEW

HQ DIAMOND BIT SIZE SPECIFICATIONS

NOTE:

          *HQ impregnated diamond bit,HQ surface set diamond bit, HQ polycrystalline diamond compact bit,HQ thermally stable diamond polycrystalline bit are all available

          **HQ oversize and other size bits are both available as requests

         ***HQ diamond bits with different profile are available as requests

  ****HQ daimond bits with different waterway designs are also available as requests

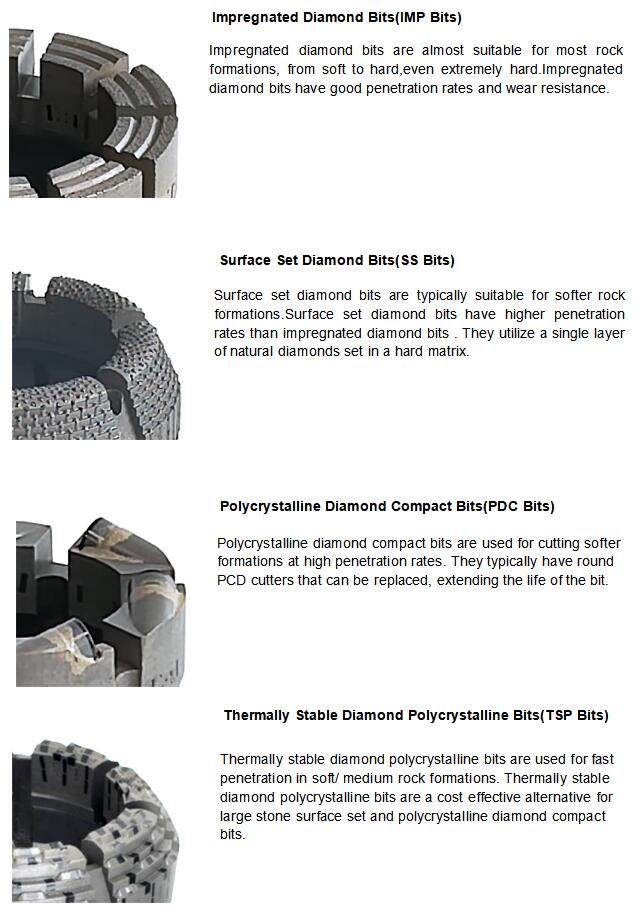

HQ DIAMOND BIT TYPE OPTIONS

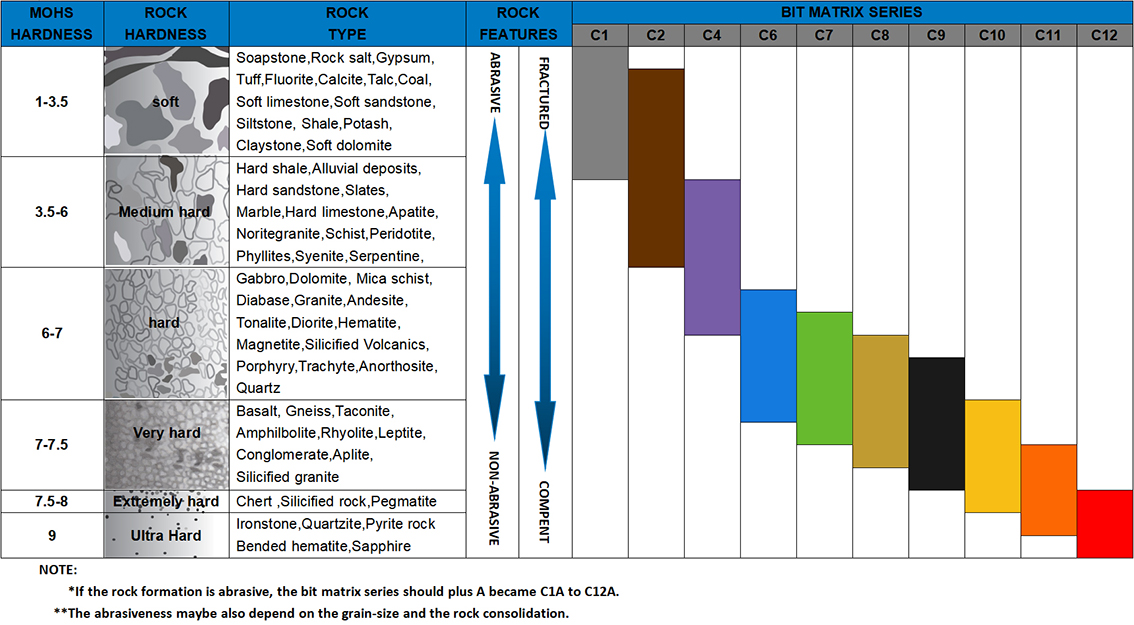

HQ DIAMOND BIT MATRIX SELECTION CHART

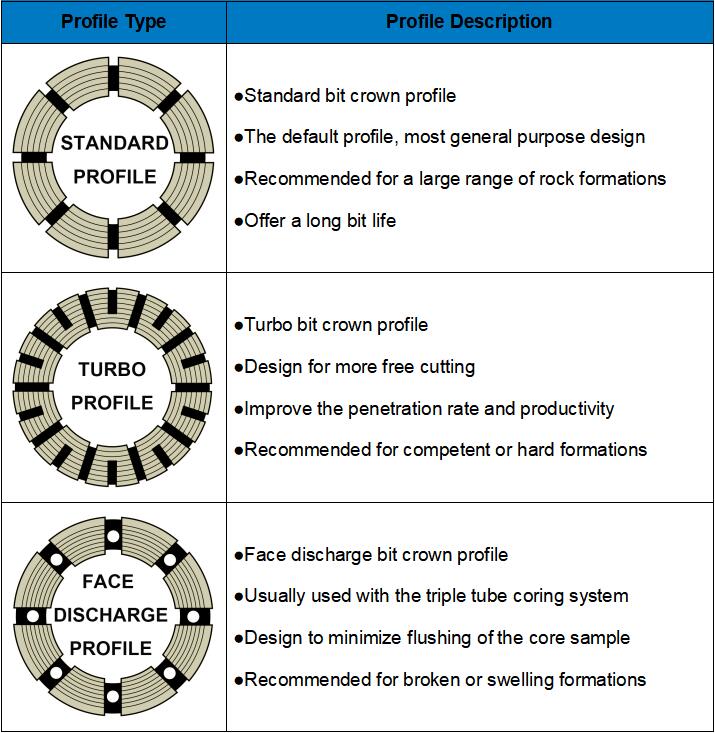

HQ DIAMOND Bit CROWN PROFILE OPTIONS

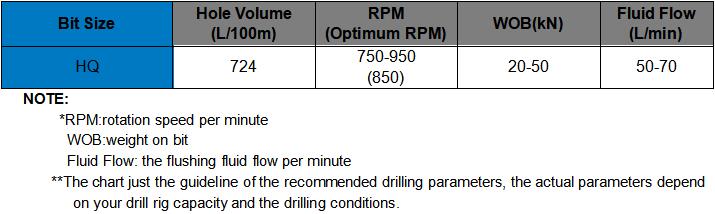

HQ DIAMOND BIT RECOMMENDED DRILLING PARAMETERS

.

REFERENCE PART#

C4056 409 C4056408 C4056410 C4056244 C4056153 C4056386 C4056647 C4056413 C4056239 C4056148 C4056247 C4056317 C4056679 C4056038 C4056417 C4056243 C4056152 C4056246 C4056052 C4065013 C4056324 C4056323 C4056414 C4056150 C4056325 C4065012 C4065425

C3760920463 C3760920464 C3760920465 C3760920466 C3760920467 C3760920468 C3760920469

C3760920470 C3760920471 C3760920472 C3760920039 C3760920040 C3760920041 C3760920042

C3760920043 C3760920044 C3760919138 C3760918456 C3760920047 C3760920048 C3760920045

C3760920046 C3760918883 C3760918414 C3760918664 C3760918966 C3760918424 C3760918434

C3760919130 C3760918845 C3760918847 C3760920242 C3760920201 C3760920202 C3760920243

C3760920244 C3760920245 C3760920203 C3760920246 C3760920204 C3760920347 C3760920348

C3760920349 C3760920350 C3760920351 C3760920352 C3760920535 C3760920354 C3760920355

C3760920357 C3760920358

REFERENCE PHOTOS
