PQ head assembly is the main part of PQ core barrel. PQ head assembly is used together with PQ inner tube, PQ stop ring, PQ core lifter, PQ core lifter case. They compose the PQ inner tube assembly. When using the P size wireline drilling, we do not have to remove the entire P size drill string to get the core sample from the bottom of the hole. We just need to lift the PQ inner tube assembly. It is the great advantage compare to conventional drilling.

PQ HEAD ASSEMBLY, PQ LINK LATCH HEAD ASSEMBLY

NOTE:

           *PQ MKII spearhead assembly(C5008323,C500816,C5007947,C3547002,C5008170,C5003192) is also available

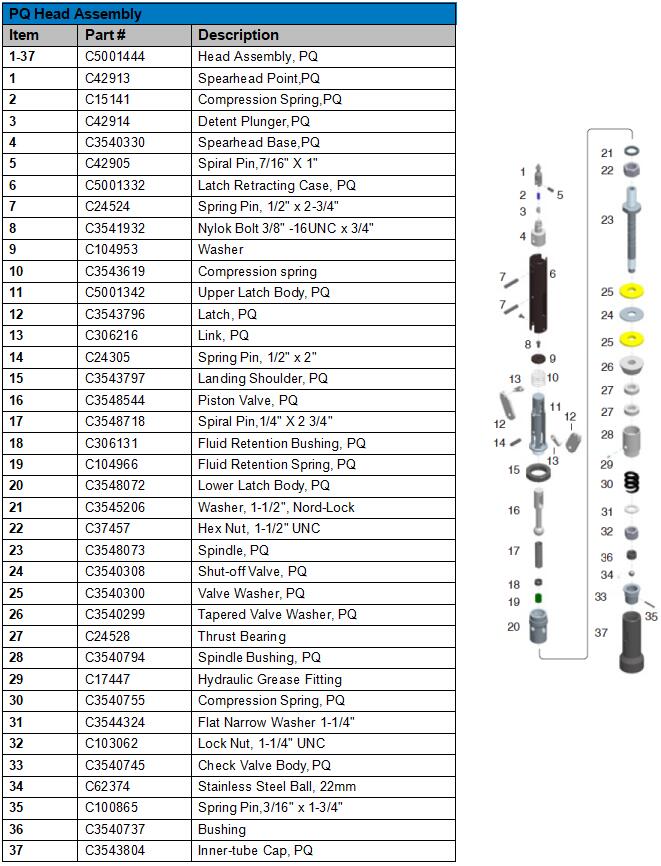

REFERENCE PART ITEMS

Head Assembly, PQ Spearhead Point,PQ Compression Spring,PQ Detent Plunger,PQ Spearhead Base,PQ Spiral Pin,7/16" X 1" Latch Retracting Case, PQ Spring Pin, 1/2" x 2-3/4" Nylok Bolt 3/8" -16UNC x 3/4" Washer Compression spring Upper Latch Body, PQ Latch, PQ Link, PQ Spring Pin, 1/2" x 2" Landing Shoulder, PQ Piston Valve, PQ Spiral Pin,1/4" X 2 3/4" Fluid Retention Bushing, PQ

Fluid Retention Spring, PQ Lower Latch Body, PQ Washer, 1-1/2", Nord-Lock Hex Nut, 1-1/2" UNC Spindle, PQ Shut-off Valve, PQ Valve Washer, PQ Tapered Valve Washer, PQ Thrust Bearing

Spindle Bushing, PQ Hydraulic Grease Fitting Compression Spring, PQ Flat Narrow Washer 1-1/4" Lock Nut, 1-1/4" UNC Check Valve Body, PQ Stainless Steel Ball, 22mm Spring Pin,3/16" x 1-3/4"

Bushing Inner-tube Cap, PQ

REFERENCE PART#

C5001444 C42913 C15141 C42914 C3540330 C42905 C5001332 C24524 C3541932 C104953 C3543619 C5001342 C3543796 C306216 C24305 C3543797 C3548544 C3548718 C306131 C104966

C3548072 C3545206 C37457 C3548073 C3540308 C3540300 C3540299 C24528 C3540794 C17447 C3540755 C3544324 C103062 C3540745 C62374 C100865 C3540737 C3543804

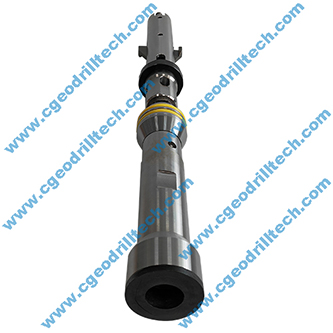

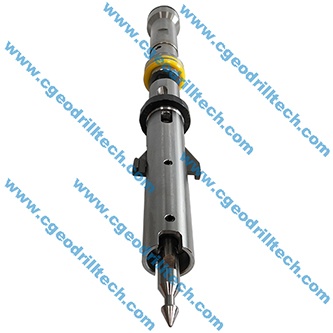

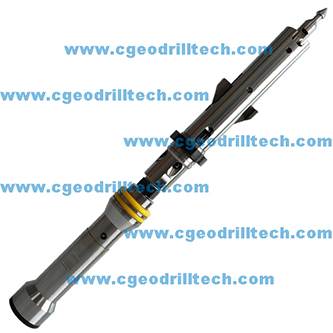

REFERENCE PHOTOS
