Underground compact water swivel is a part which provides a watertight or airtight rotating joint to connect the pump to the drill rod with a high pressure hose. Most water swivels can use with a variety of flushing mediums including water, air, foam, or bentonite drilling fluids.

Underground compact water swivels are made of high-quality alloy steel and with replaceable V-ring packing style seal gland for standard drilling application.

UNDERGROUND COMPACT WATER SWIVEL

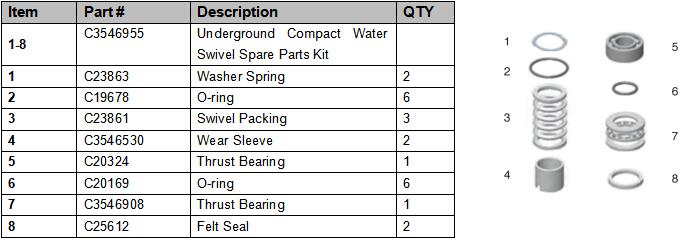

UNDERGROUND COMPACT WATER SWIVEL SPARE PARTS KIT

WATER SWIVEL FEATURES

●Available in compact, standard duty, heavy duty and underground types with accordingly sized spindle porting and an NPT side fluid supply connection.

●Spring loaded, self-adjusting gland packings ensure reliable seal.

●Easily replaceable hardened packing wear sleeves protect the spindle from packing wear.

●Weep holes prevent any leakage past the packing from reaching the bearing, and also indicate packing condition to the operator.

●Protected grease fitting to allow easy lubrication of bearings. Lubrication path conducts contaminants away from the bearing and relieves excess lubrication pressure.

●Easily disassembled with pipe wrenches, a screw driver, spanner wrench, and soft mallet, for easy packing or wear sleeve replacement.

●Suitable for use with water or drilling mud only. Packings and mating wear sleeves are subject to wear and generally operate with a small degree of leakage depending on rpm and vibration levels.

●Adapter Subs are available to adapt to BQ, NQ,HQ,PQ,BRQ,NRQ,HRQ,PHD drill rods.

REFERENCE PART ITEMS

Water Swivel assembly Swivel Cap Wavy Washer O-ring Water Swivel Packing Slotted Wear Sleeve Water Swivel Packing Cage Thrust Bearing Upper Water Swivel Body Water Swivel Spindle

O-ring Thrust Bearing Lower Water Swivel Body Hydraulic Grease Fitting Felt Seal

Underground Compact Water Swivel Spare Parts Kit Washer Spring O-ring Swivel Packing Wear Sleeve Thrust Bearing O-ring Thrust Bearing Felt Seal

REFERENCE PART#

C3546953 C3542931 C23863 C19678 C23861 C354653 C23866 C20324 C3546531 C3546907 C20169 C3546908 C3546909 C17447 C25612

C3546955 C23863 C19678 C23861 C3546530 C20324 C20169 C3546908 C25612

REFERENCE PHOTOS
